The introduction of Web Guiding System |
|
![](element/space_20.gif) |
Web Guiding Systems are used to position flat materials (webs), before processing.
When the webs are processed, they will first go through the equipment to unfold the webs into a flat shape. After processing, it will be re-rolled into the web. The Web Guiding System is a key device after the roll material is unrolled and before it is re-rolled into a roll material.
The Web Guiding System uses detectors to detect the position of the fabric and inputs the detected position error signal into the controller. After signal processing, it outputs the driving signal to the driver to adjust the lateral position of the material to ensure that the material does not shift left and right during movement. The edge correction control system will be used in stenter machines, slitting machines, slitting and rewinding machines, printing machines, coating and laminating machines, etc.
Euntay Electric Co., Ltd.'s Web Guiding System products include the Edge Position Control System (E.P.C), Centering Position Control System (C.P.C), Line Position Control System (L.P.C), etc. |
|
![](line/line-1000.gif) |
![](img-epc0/epc-01.jpg) |
![](element/dot-epc01.gif) |
Edge Position Control System |
|
![](element/space_5.gif) |
The Edge Control System aligns the material’s selvage during the material production process to keep the edge position consistent. According to the characteristics of the material, edge control is divided into:
•Edge control of films and papers: It is suitable for edge alignment control of materials with no burrs and neat cross-sections, such as film, paper, and other materials.
•Edge control of fabrics and leathers: It is suitable for edge control of general opaque materials, such as leather, cloth, and other materials. |
![](element/space_50.gif) |
![](connet/connet_more.gif) |
|
|
![](line/dotline-1000.gif) |
![](element/dot-epc02.gif) |
Centering Position Control System |
|
![](element/space_5.gif) |

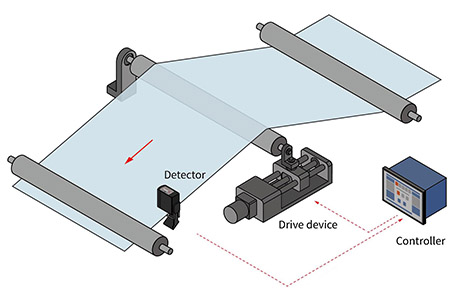

The Centering Position Control System is a center guidance system specially designed for products such as cloth, non-woven fabrics, papers, films, leather and tape, conveyor belts, etc. due to sliding displacement on the production line. It can be used with a width-measuring device, infrared-type centering detectors, infrared-type edge-sensing detectors, and ultrasonic-type selvage detectors... to achieve the function of dynamic offset correction. |
![](element/space_70.gif) |
![](connet/connet_more.gif) |
|
![](img-epc0/epc-02.jpg) |
|
![](line/dotline-1000.gif) |
![](img-epc0/epc-03.jpg) |
![](element/dot-epc03.gif) |
Line Position Control System |
|
![](element/space_5.gif) |
Line Position Control System is a tracking device specially designed for printing line position and chromatic aberration; it is equipped with a newly developed digital multi-function detector. The microprocessor calculates the reflection amount of the image of the detected object and accurately determines the edge position of lines and chromatic aberration. Line Position Control System is suitable for transparent/non-transparent films, printing materials, paper, metal films, and other materials. |
![](element/space_70.gif) |
![](connet/connet_more.gif) |
|
|
