Edge Position Controller EPD-3008-A
EPD-3008 can accept an Ultrasonic or Infrared-type edge position detector to drive an electric cylinder and achieve material edge alignment. |
|
 |
• |
Built-in DC motor feedback loop that can select a drive unit, which accepts feedback signal, and enhance the accuracy and response of edge alignment. |
• |
Combining the operation panel and controller together can mount on the surface of a plate or externally stand-alone for operation. |
• |
Accepting vary of Edge Position Detectors. |
| • |
Working to vary of drive units, such as EPM series electric cylinders. |
| • |
Built-in the loop of edge position output signal that can connect to the external high-capacity drive unit and enlarge drive capacity. |
| • |
Equipped with RS-485 communication that can connect to computers. |
|
|
 |
 |
|
| Edge Position Controller EPD-3008-A Specifications |
 |
| Mount |
Box Panel-mount, Panel-mount, Table-mount |
| Operation way |
Keys function: Manual / Back center / Automatic / Manual left / Manual right. |
| Status indication |
Operation / Manual / Back center / Automatic /
Inner limit / Outer limit / Abnormal indication |
| Detector detection position indication |
Left ten-position indication /Correct position indication / Rightten-position indication |
| Supply voltage |
AC 220V±10%, 50/60HZ, Consumption current～200mA |
| Detector’s Power |
DC±12V(150mA max.) |
| Analog input signal |
DC±8V(Input Impedance 20KΩ) |
| Detector communication signal |
Cooperate with the communication type edge position detector
(high reaction transmission, Euntay specifications) |
| Analog edge position alignment output signal |
DC±8V (5mA max.) |
| Motor output |
DC±24V (3A max.) |
| Communication |
RS485 MODBUS RTU |
| Parameter setting |
Parameter setter,DOP-01(Option) |
| Housing |
Iron box with powder coating |
| Weight |
3.6 kg |
|
 |
| Operation environment |
0℃～45℃
35～85%RH (No condensation)
Without corroded gas, flammable gas, and conduction dust |
|
|
|
 |
|
|
|
 |
 |
|

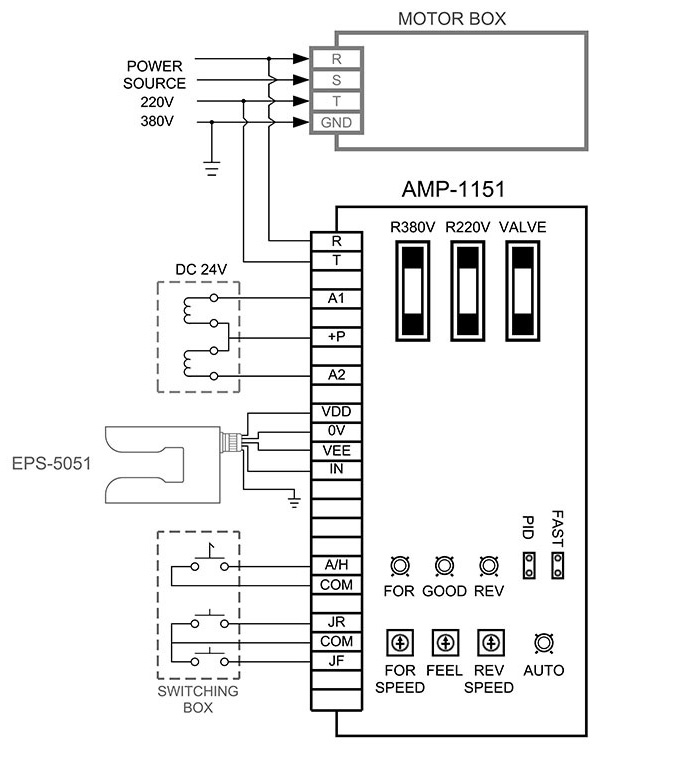

| Edge Position Controller EPD-3008-A Wiring Diagram |
|
|
|
|
 |
|

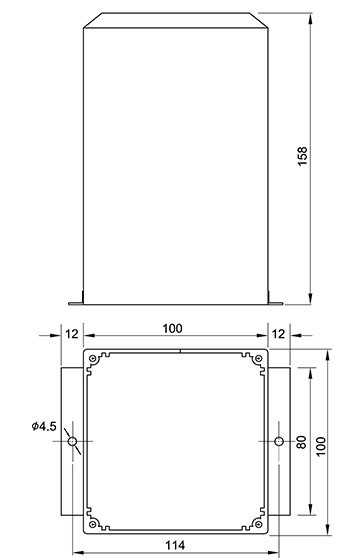

| Edge Position Controller EPD-3008-A Dimension Diagram |
|
|
 |
|
 |
|

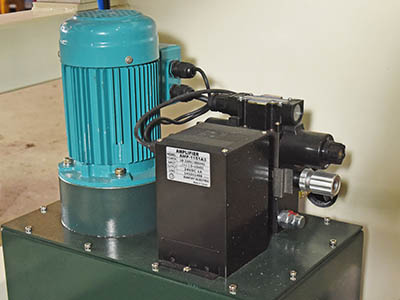

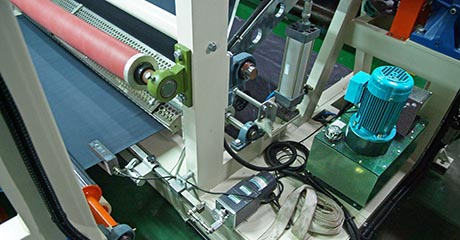

| Edge Position Controller EPD-3008-A Application Examples |
|
|
|
|
 |
| Edge Position Controller EPD-3008-A is applied to the edge position control of “Plastic Inflation Machine”. |
|
|
 |
 |
 |
|
 |
|
