| Ultrasonic Detector EPS-706SH has the features of high-sensitivity and high-resolution, could accurately detect the edge position of material, is suitable for the edge position detection of materials, which have neat edge and without burrs or are transparent, such as thin films, papers and other materials. |
|
|
 |
 |
 |
| Ultrasonic Detector EPS-706SH Specifications |
 |
 |
| System |
|
| Detection method |
Ultrasonic detection |
| Power |
±12Vdc 200mA |
| Vertical detection range |
30mm |
| Horizontal detection range |
±3mm |
| Resolution |
0.1mm |
| Ambient temperature |
0°C ~45°C |
| Ambient humidity |
35 - 85% RH (No condensation) |
| Environment requirement |
Not allowed corrosive gases, dust and rain |
| Weight |
Net weight 0.4Kg, Full package 2.3Kg
(including adjusting rack, cable) |
|
|
|
| Mechanic data |
|
| Connection |
Cable |
| Mounting |
Adjusting rack |
| Housing |
Aluminum |
| Dimension |
Refer to “Dimension Diagram” |
|
|
|
| Electric data |
|
| Output detection signal |
DC±8V, 5mA max. |
|
|
 |
|
|
 |
| |
| Ultrasonic Detector EPS-706SH Wiring Diagram |
|
|
|
|
| |
| |
 |
|
| Ultrasonic Detector EPS-706SH Dimension Diagram |
|
|
|
|
 |
|
| Ultrasonic Detector EPS-706SH Application Examples |
|
|
|
|
| |

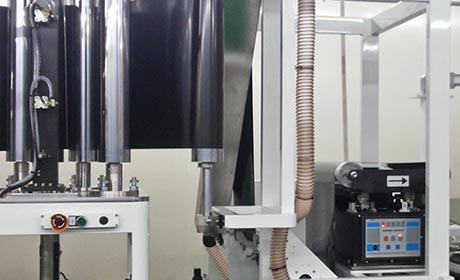

| Ultrasonic Detector EPS-706SH is applied to the edge position detection in the “manufacturing equipment of thin films”. |
|
|
 |
|
|
|
|
| Ultrasonic Detector EPS-706SH is applied to the edge position detection in “Plastic Inflation Machine”. |
|
|
|
 |
 |
 |
|
 |
|
