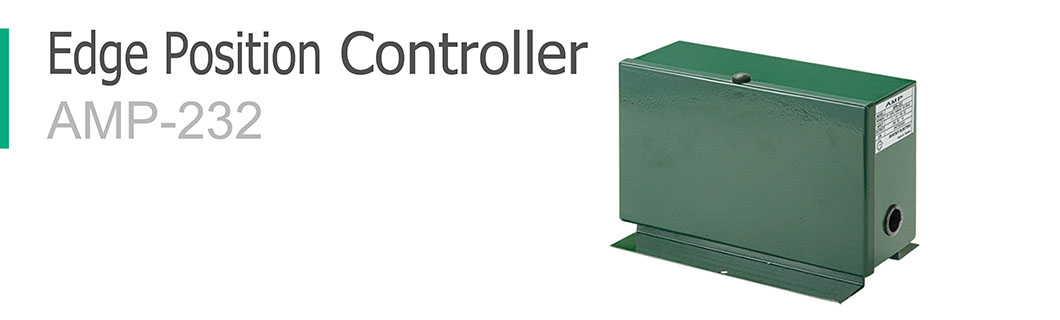

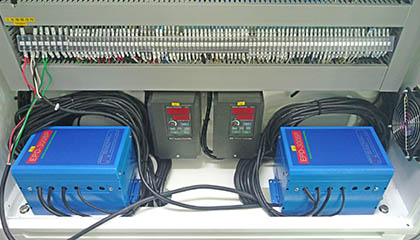

Controller AMP-232 accepts the material’s edge position error signal of detector, after calculating and processing, output control signal to hydraulic device. It is suitable for the edge position control for paper, fabrics, opaque materials and black mesh, such as materials.

Using 4Q control and the response time of start and brake are faster.

Using regenerative-resistor type of brake, it saves power consumption.

In case of motor short-circuit or overload-operation, the circuit will instantly be cut off to protect the controller and the motor from damage.

Edge Position Controller AMP-232 Specifications
System
Function Hydraulic type Edge Position Drive’s Control
Power 1∮, AC 220V/380V, 50/60Hz
Power consumption 40VA
Ambient temperature 0°C ~40°C
Ambient humidity 85% RH below(No condensation)
Protection Overload, Short-circuit, Surge, Over-current of power,
control-signal and limit switch
Vibration Test 10~55Hz 0.5mm (0.5G max.)
Environment requirement Without corroded gas, flammable gas and conduction dust,
below 1000 meters above sea level
Weight 2Kg
Applicable detectors EP-10, EPS-5042, EPS-5051, EPS-623-SD
Applicable drive devices or load EPD-115-AM, EPD-215-AM or DC solenoid valve, Relay
Mechanic data
Mounting Screwed-mount
Housing Aluminum
Dimension Refer to “Dimension Diagram”
Electric data
Detector’s power VDD: +12V, VEE: -12V, 0V
Detector’s signal input DC 0 ~ ± 8V, input impedance 20KΩ
Rated output DC24V, 1.2A
Pulse output Pulse, Peak voltage DC 24V, 1.2A, two sets of output
Manual or Auto. control Contact-input control
Edge Position Controller AMP-232 Wiring Diagram

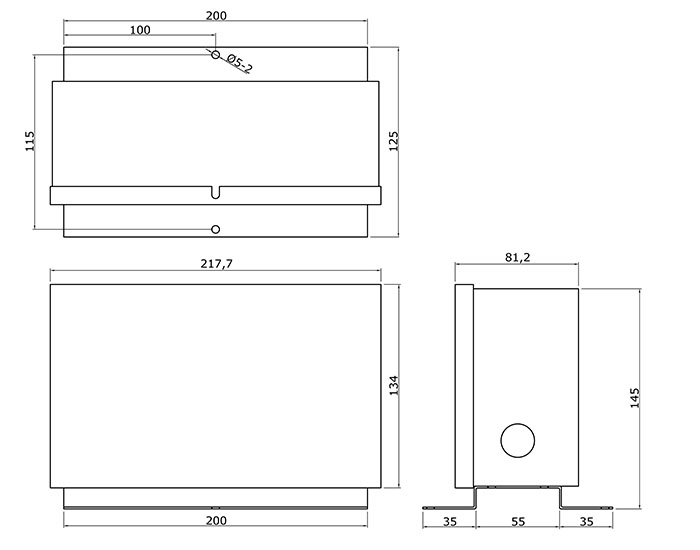

Edge Position Controller AMP-232 Dimension Diagram
