Digital DC Motor Drive V65D series ” utilizes the DSP technology and modular design, it could replace analog type dc motor drive completely, so V65D DC Motor Drive is very suitable for the refurbished market of the DC Motor Drive of traditional machinery, the application market of the power requirement of high-torque in low-speed.

Using the technology of DSP, control is accurate.

The driving range for DC Motor is from 35A to 2,000A.

Two-quadrant DC motor unidirectional control and four-quadrant DC motor forward and backward two-direction control.

Selections of feedback signal, Armature voltage, ACTG or DCTG and Encoder.

Auto detection and adjustment to Phase sequence (R-S-T).

Regenerate type of brake, saving energy.

Field weakening control.

Magnetic loss, motor overload protection.

Self- diagnosis function, maintenance is easy.

Support RS-485 interface and MODBUS protocol.

35, 70 AMP 110 AMP 150, 180, 270 AMP 400, 500 AMP 835 AMP 4Q-1500A, 4Q-1800A, 4Q-2000A
Digital DC Motor Drive V65D Dimension Diagram
A) 35A, 70A

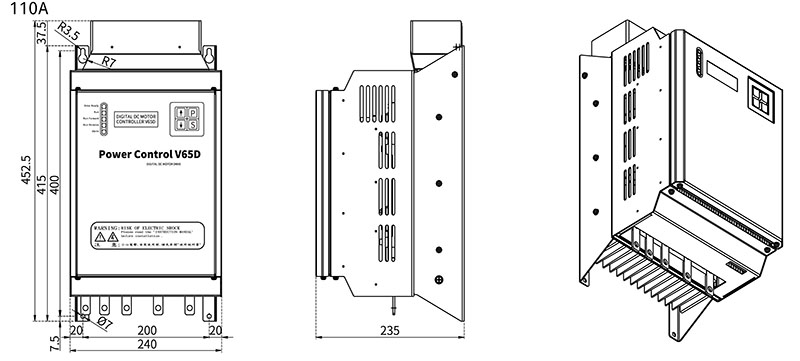

B) 110A
C) 150A, 180A, 270A
D) 400A, 500A
E) 835A
F) 2Q-1000A, 2Q-1200A
G) 4Q-1000A, 4Q-1200A, 2Q-1500A, 2Q-1800A, 2Q-2000A
H) 4Q-1500A, 4Q-1800A, 4Q-2000A
